Steam Generators

Our steam generators are sold with steam controls included

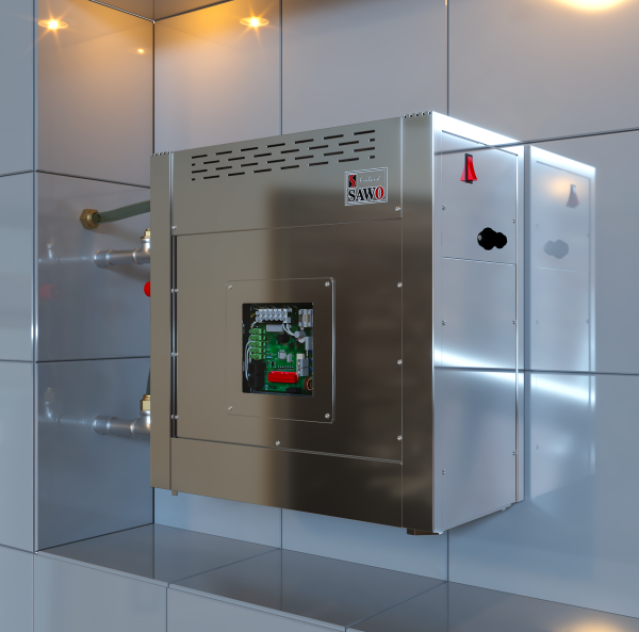

STE-W Steam Generator Details

STE-W Steam generators are best for residential use. It has straight forward functions that is very easy to operate by switching on the control and adjusting the temperature knob. This steam generator is made from stainless steel. It can be installed that the steam outlet be facing left or right at any convenient position.

SAWO steam generators can be tapped up to 5 series connections to have maximum power output using only 1 control. Maximum power output is 75kW.

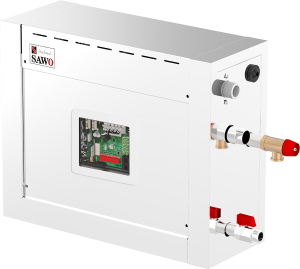

STE-2H
2 Heating elements

• Steam output up to 6,7kg/hr
• Own pipe for overpressure valve
• Steam head included
• 3kW – 5kW power

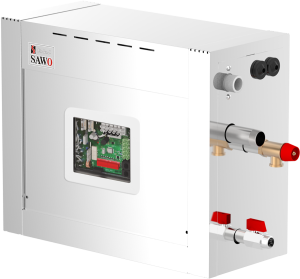

STE-3H
3 Heating elements

• Steam output up to 7,5kg/hr

• Own pipe for overpressure valve

• Steam head included

• 4,5kW – 7,5kW power

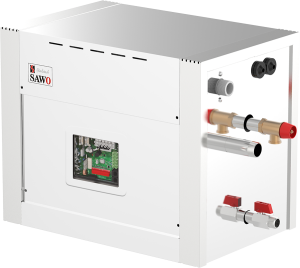

STE-6H
6 Heating elements

• Steam output up to 20kg/hr

• Own pipe for overpressure valve

• Steam head included

• 9kW – 15kW power

THIS INCLUDES STEAM CONTROLS

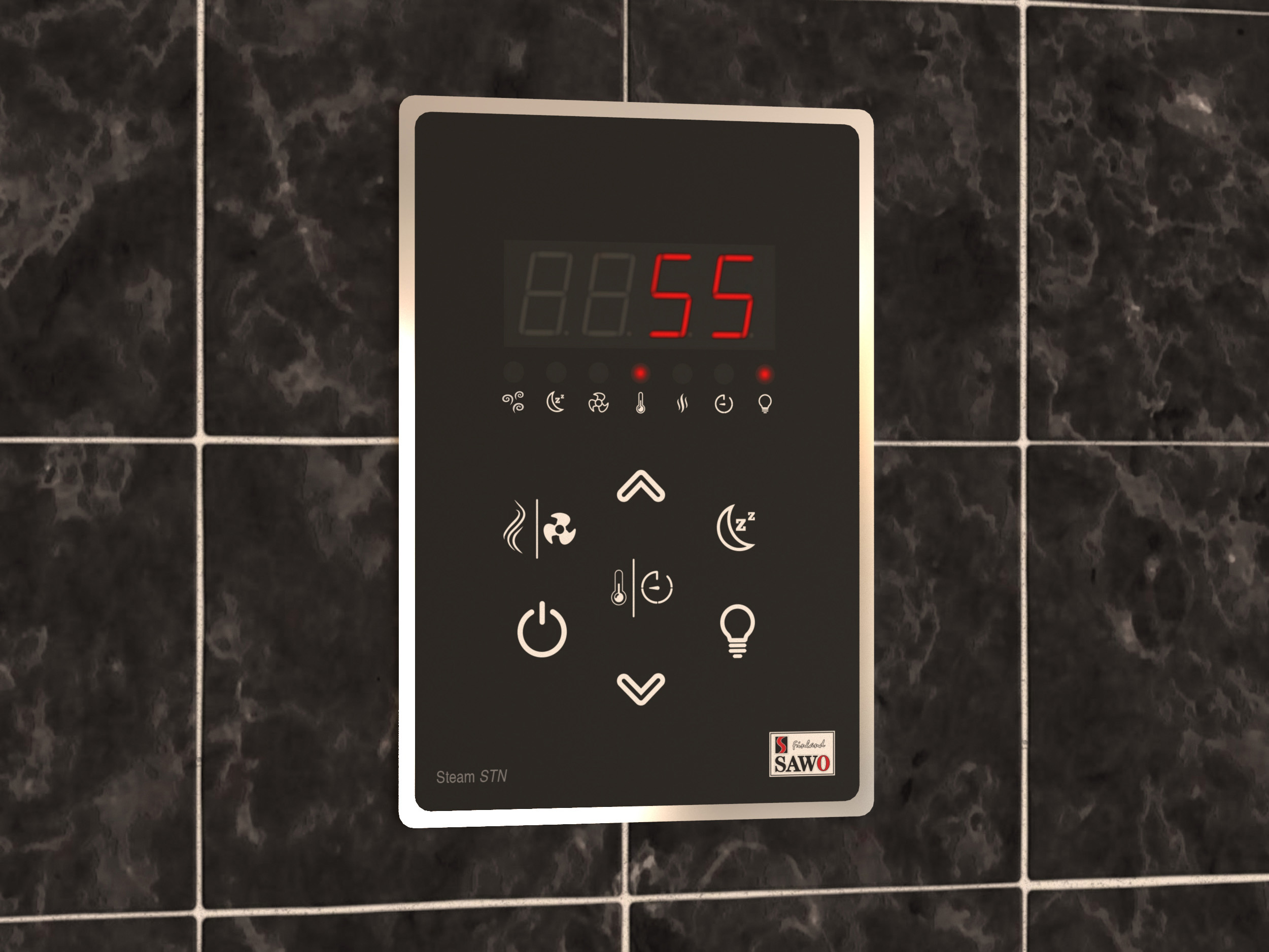

STP-INFACE -V2

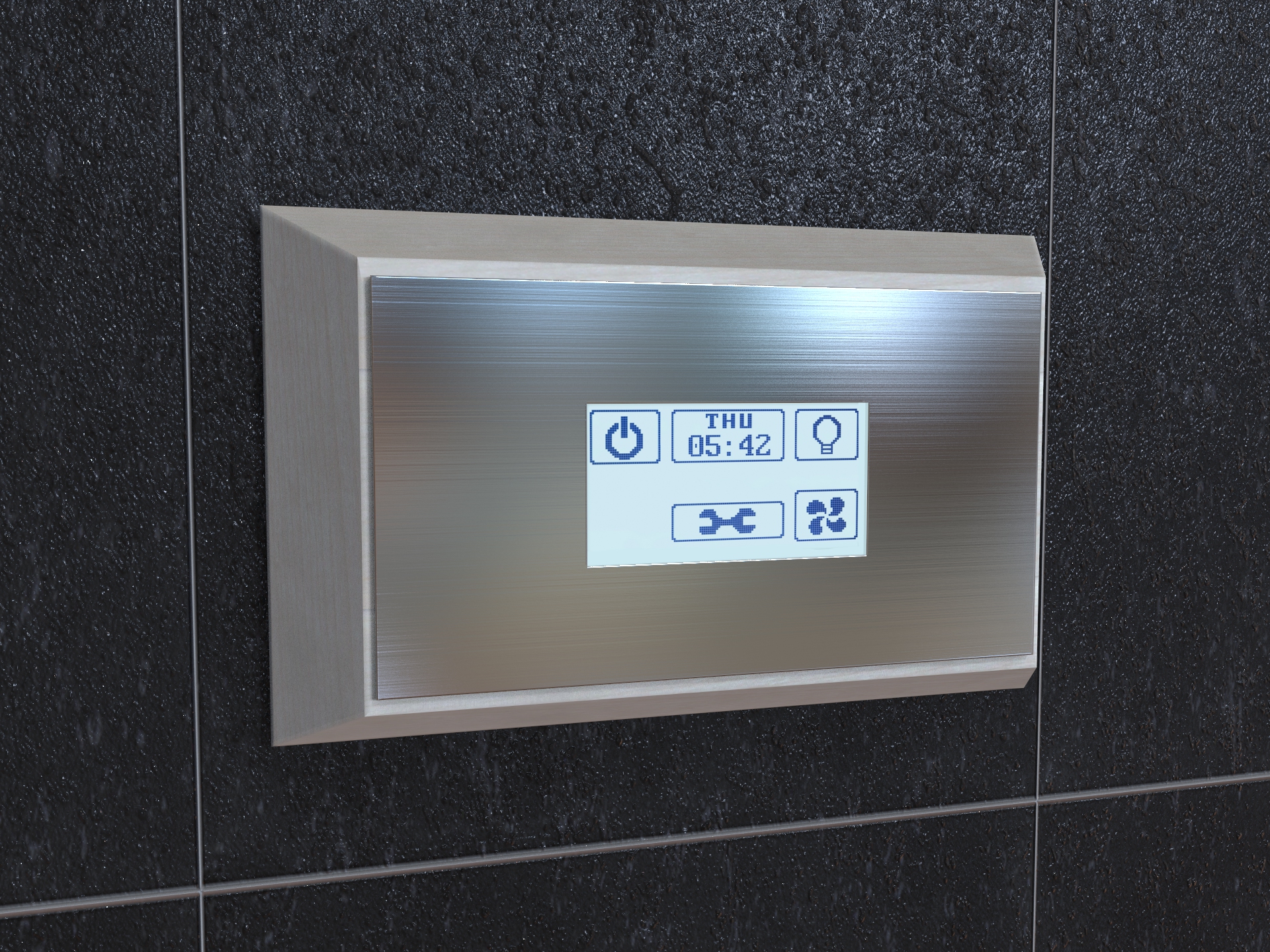

STP-INFACE-SST

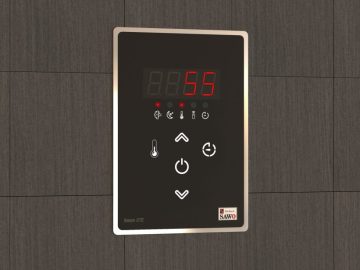

STE-INFACE -V2

+ Click this for more specification

Technical Data

2 Heating Elements

Model Name	Power (kW)	Steam Room Volume (m3)	Supply Voltage (V)	Current (A)	Phase	Wire Size (mm2)	Size (mm) Width Depth Height	Weight
STN-W-30-1/2	3	3 max	220-240 380-415	14 8	1N 2N	2,5 2,5	525 – 175 – 410	9
STN-W-35-1/2	3,5	3,5 max	220-240 380-415	16 19	1N 2N	2,5 2,5	525 – 175 – 410	9
STN-W-40-1/2	4	4 max	220-240 380-415	18 10	1N 2N	4 2,5	525 – 175 – 410	9
STN-W-45-1/2	4,5	2 – 5	220-240 380-415	20 12	1N 2N	4 2,5	525 – 175 – 410	9
STN-W-50-1/2	5	2 – 6	220-240 380-415	22 8	1N 2N	4 2,5	525 – 175 – 410	9

3 Heating Elements

Model Name	Power (kW)	Steam Room Volume (m3)	Supply Voltage (V)	Current (A)	Phase	Wire Size (mm2)	Size (mm) Width Depth Height	Weight
STN-W-45-C1/3	4,5	2 – 5	220-240 380-415	7	1N 3N	2,5	525 – 200 – 410	10
STN-W-60-C1/3	6	3 – 10	220-240 380-415	27 9	1N 3N	6 2,5	525 – 200 – 410	10
STN-W-75-C1/3	7,5	4 – 15	220-240 380-415	13 11	1N 3N	8 2,5	525 – 200 – 410	10

6 Heating Elements

Model Name	Power (kW)	Steam Room Volume (m3)	Supply Voltage (V)	Current (A)	Phase	Wire Size (mm2)	Size (mm) Width Depth Height	Weight
STN-W-90-C1/3	9	8 – 20	220-240 380-415	40 13	1N 3N	10 2,5	525 – 290 – 410	13
STN-W-120-3	12	15 – 28	380-415	18	3N	4	525 – 290 – 410	13
STN-W-150-3	15	22 – 40	380-415	22	3N	4	525 – 290 – 410	13
