Steam Generators

Our steam generators are sold with steam controls included

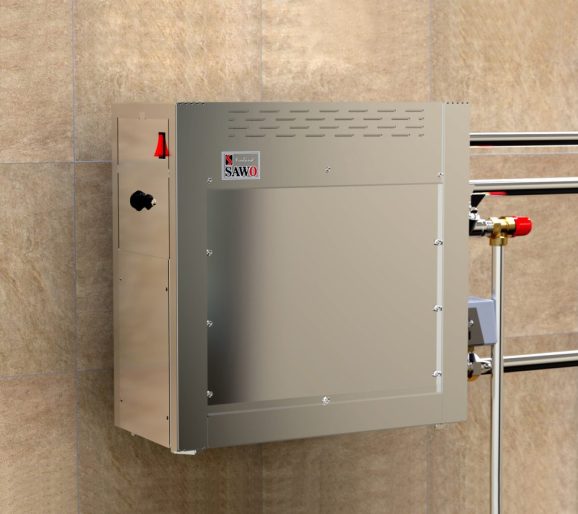

STN-W Steam Generator Details

A more robust and heavy-duty performer STN-W steam generators are the best choice for commercial use. It is bagged with several control features for a more desirable settings. Aroma, fan and dimmer lights are optional features. Demand button can be installed to release extra steam for 30 seconds. Troubleshooting becomes very handy as error codes are displayed on the controller screen.

STN-W steam generators are made from thick stainless steel to minimize corrosion. These steam generators can be installed in any favorable left or right orientation.

SAWO steam generators can be tapped up to 5 series connections to have maximum power output using only 1 control. Maximum power output is 75kW.

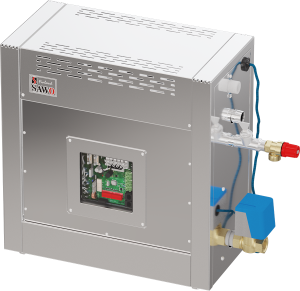

STW-2H
2 Heating elements

• Steam output up to 6,7kg/hr
• Own pipe for overpressure valve
• Auto drain
• Steam head included
• Cassette type heating element
setup for easy maintenance
• 3kW – 5kW power
• ¾” steam pipe
• STP Classic, STP Classic 2.0 and
STP Stainless Steel Touch

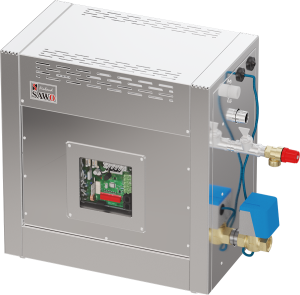

STW-3H
3 Heating elements

• Steam output up to 7,5kg/hr
• Own pipe for overpressure valve
• Auto drain
• Steam head included
• Cassette type heating element
setup for easy maintenance
• 4,5kW – 7,5kW power
• ¾” steam pipe
• STP Classic, STP Classic 2.0 and
STP Stainless Steel Touch

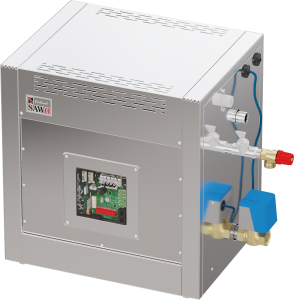

STW-6H
6 Heating elements

• Steam output up to 20kg/hr
• Own pipe for overpressure valve
• Auto drain » Steam head included
• Cassette type heating element
setup for easy maintenance
• 9kW – 15kW power
• ¾” steam pipe
• STP Classic, STP Classic 2.0 and
STP Stainless Steel Touch

THIS INCLUDES STEAM CONTROLS

STP-INFACE -V2

STP-INFACE-SST

STE-INFACE -V2

+ Click this for more specification

Technical Data

2 Heating Elements

Model Name	Power (kW)	Steam Room Volume (m3)	Supply Voltage (V)	Current (A)	Phase	Wire Size (mm2)	Size (mm) Width Depth Height	Weight
STN-W-30-1/2	3	3 max	220-240 380-415	14 8	1N 2N	2,5 2,5	525 – 175 – 410	9
STN-W-35-1/2	3,5	3,5 max	220-240 380-415	16 19	1N 2N	2,5 2,5	525 – 175 – 410	9
STN-W-40-1/2	4	4 max	220-240 380-415	18 10	1N 2N	4 2,5	525 – 175 – 410	9
STN-W-45-1/2	4,5	2 – 5	220-240 380-415	20 12	1N 2N	4 2,5	525 – 175 – 410	9
STN-W-50-1/2	5	2 – 6	220-240 380-415	22 8	1N 2N	4 2,5	525 – 175 – 410	9

3 Heating Elements

Model Name	Power (kW)	Steam Room Volume (m3)	Supply Voltage (V)	Current (A)	Phase	Wire Size (mm2)	Size (mm) Width Depth Height	Weight
STN-W-45-C1/3	4,5	2 – 5	220-240 380-415	7	1N 3N	2,5	525 – 200 – 410	10
STN-W-60-C1/3	6	3 – 10	220-240 380-415	27 9	1N 3N	6 2,5	525 – 200 – 410	10
STN-W-75-C1/3	7,5	4 – 15	220-240 380-415	13 11	1N 3N	8 2,5	525 – 200 – 410	10

6 Heating Elements

Model Name	Power (kW)	Steam Room Volume (m3)	Supply Voltage (V)	Current (A)	Phase	Wire Size (mm2)	Size (mm) Width Depth Height	Weight
STN-W-90-C1/3	9	8 – 20	220-240 380-415	40 13	1N 3N	10 2,5	525 – 290 – 410	13
STN-W-120-3	12	15 – 28	380-415	18	3N	4	525 – 290 – 410	13
STN-W-150-3	15	22 – 40	380-415	22	3N	4	525 – 290 – 410	13
